ADMT-8HT2 ADMT-8HT3 Borewell Water Detector Adjustable Depth 100m To 800m

admt 800ht2 admt 800ht3 borewell water detector 100m/200m/300m/500m/800m
Categories , Tags , , ,

The new ADMT-8HT2/8HT3 water-finding tool inherits the advantages of its predecessor—completely wireless and easy to operate—while addressing product shortcomings and improving instrument accuracy. It adds several new functions, including segmented measurement, depth stratification, data processing, 2D/3D/slice mapping, AI analysis, and offline measurement, enhancing accuracy and user experience. This will deliver reliable results for well drilling and water finding, improving economic efficiency.

Brand Name

ADMT

Measurement Mode

MN, TT

Place of Origin

China

Model Number

ADMT-8HT2, ADMT-8HT3

11 promotional models

All models

Got it Quotation

Details About ADMT-8HT2 ADMT-8HT3 Borewell Water Detector Adjustable Depth 100m To 800m

The ADMT-8HT2/8HT3 borewell water detector is a cutting-edge device designed for detecting and locating water sources in borewells. This device is an essential tool for the agricultural and construction industries, providing an efficient and accurate way to locate water sources in underground wells.

ADMT-8HT2/8HT3 uses advanced technology to detect and locate water sources in drilling. Its working principle is to detect the anomaly of underground apparent resistivity, judge it through the high resistance and low resistance areas, and receive it by the receiver of the equipment. Then, the device calculates the depth of water source according to the time required for signal return.

The new Bluetooth and WiFi hotspot connectivity allows for field measurements without a network connection, helping you create real-time floor plans and identify water locations and depths. It supports both MN and TT measurement modes, with customizable depth settings and the ability to measure only a specific section of the subsurface. This more intuitive, convenient, and advanced technology makes it suitable for both beginners and experienced users.



Similar products at different depth of 800 meter High Accuracy Ground Water Detector:

parameter  modelADMT-8HT2ADMT-8HT3
Adjustable depth(m)100M TO 800M(Adjust Deep)
Battery power consumption8.4V2600mAH lithium battery, power consumption about 130mA
Connection modeBluetooth 4.0 (or Wifi)
MN electrodeCopper 12mm φ 10 or self-made electrode
Operation display(5-10.1) inch Android touch screen (self configured or optional)
WIFI or 4G network
major functionOptional depth, 2D/3D automatic drawing, full wireless,
automatic parameter adaptation
TT electromagnetic induction coil（mm/w）300/4450/8
TT electromagnetic induction core（KmH/m）100120
work environmentSoft/Hard
Frequency range (HZ)0.01—8K
Measurement modeMN/TT
resolution ratio0.01mV±2%
Sampling time (seconds)40-200
Deep delamination10-80
Length Weight cm/kg86/2.9100/3.5

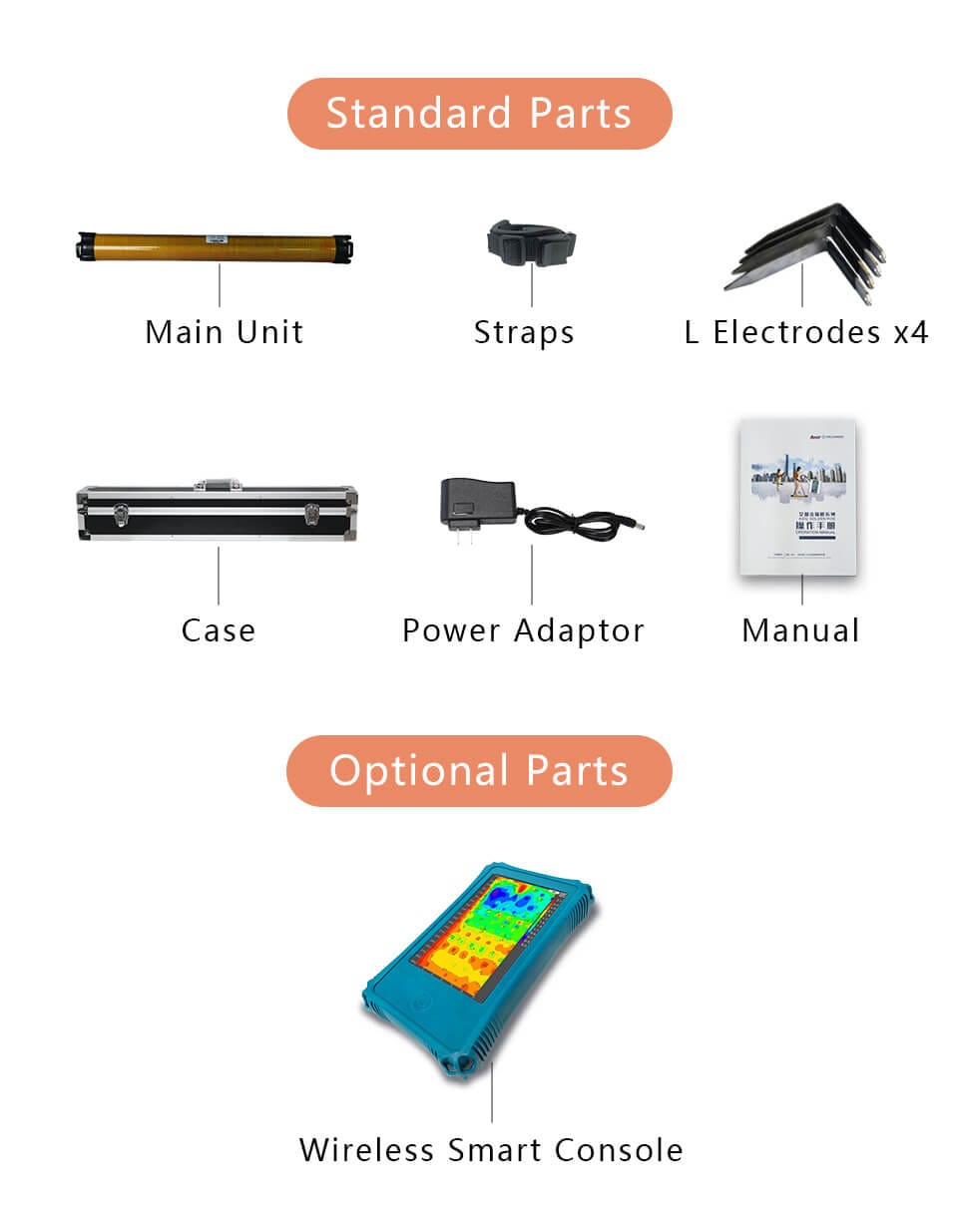

admt 3ht2 config
admt 8ht2/8ht3 config
