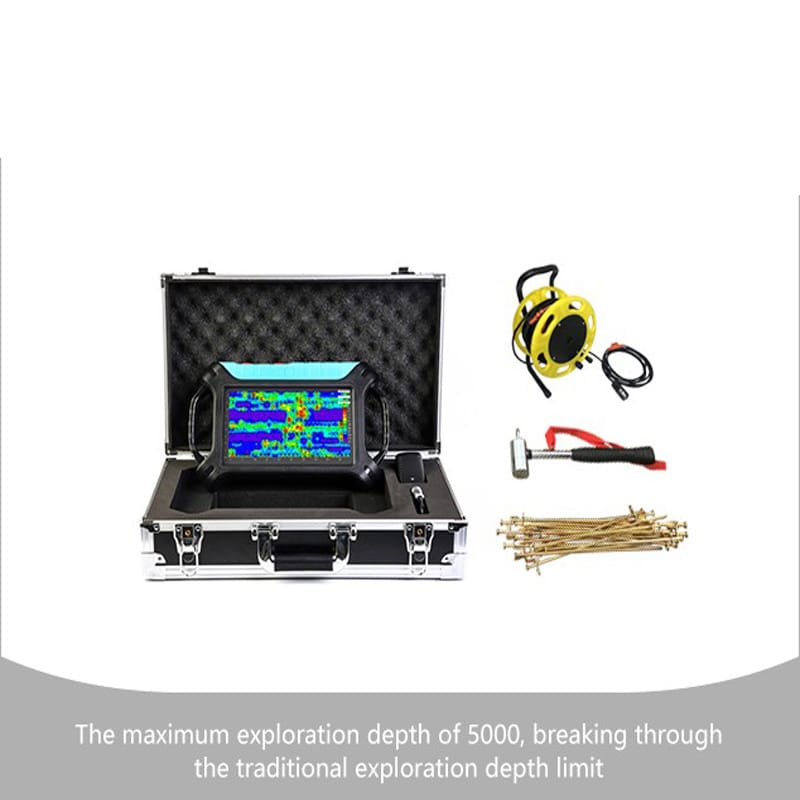

ADMT-300AX-32D/600AX-32D/1200AX-32D/3000AX-32D/5000AX-32D32-Channel High Density Professional MT Electrometer

The 32-channel high-density MT method instrument is an automatic imaging geophysical detector that uses multi-channel of simultaneous input to obtain a stable field source which avoids the problem of the nature electric field change with time.

Maximum 5000m exploration depth, number of channels, electric field and electromagnetic field measurement modes selectable.



The 32-channel high-density MT electrometer uses 32 channels for simultaneous input measurement, solving the defect of MT field source changing at any time and obtaining a stable field source, and the exploration depth reaches 5000m, breaking the depth limit of traditional high-density electrometer.



And with MN electrode and TT electromagnetic probe measurement modes, 1-32 measurement channels selectable, data superimposed filtering selectable, optional wired probe or wireless connection exploration gold band data acquisition.



A 10.1″ Android touch screen with real-time imaging is standard, and the instrument screen, mobile phone screen and computer screen are interoperable. It is very convenient to operate in the field and is highly appreciated by our customers.ADMT-300AX-32D, ADMT-600AX-32D, ADMT-1200AX-32D, ADMT-3000AX-32D, ADMT-5000AX-32D

Mineral Exploration: Detailed survey and general survey of precious metallic and non-metallic minerals such as gold, platinum, silver, lithium, etc

Treasure Exploration: Exploration and survey for rare minerals such as jade, gems, ebony, crystals, etc

Water Source Survey: It is used for detailed investigation and general survey exploration for finding groundwater

Engineering Investigation: Steel, concrete pipelines, underground facilities detection

Model ADMT-300AX-32D ADMT-600AX-32D ADMT-1200AX-32D ADMT-3000AX-32D ADMT-5000AX-32D
Max
depth (m)
≤300 ≤600 ≤1200 ≤3000 ≤5000
Channel
input
32 channels input simultaneous, electrode distance≤5m
Channel
option
1-30
Adjustable
depth
5/10/20/40/60/100/ 200/300/500/800/ 1200/2000/3000/4000/5000m
Layer
division
60-200
Connection Serial port, WiFi, Bluetooth 4.0, USB
Display 10.1 -inch, IPS wide Angle, 178° visual touch screen
Operating
system
Android6.0.1, RAM 1GB, ROM 8GB (expandable 128GB)
CPU ARM Cortex-A7, 8-core CPU, 2.0Hz
GPU OpenGL ES 2.0
Main
function
Depth optional, channel number optional, real-time 2D/3D imaging, battery removable
Measure
model
MN/TT
Frequency
range (hz)
0.001-7K
Frequency
selective
Preset frequency selection and intelligent frequency selection, analog + data filtering, 1-16 times stacking is optional
Resolution 0.001mV±2% 0.001mV±1%
Sampling
time (s)
120-9000 280-14400
Battery 900mA/H 1100mA/H
Weight 3kg
