Maximize your survey efficiency with the ACZ-9 Automatic Proton Magnetometer. Built on AIDU’s patented ACZ-8 (Broadband Low Disturbance) platform, the ACZ-9 is a next-generation geomagnetic measurement system designed for high-precision total magnetic field mapping.

Featuring fully automated workflows, wireless control, and integrated RTK-level GNSS positioning, this advanced proton precession magnetometer eliminates traditional layout constraints, delivering reliable subsurface data for experts worldwide.

• Resolution: ≤ 0.1  nT high-sensitivity detection

• Global Range: 20,000 nT – 100,000 nT

• Positioning Accuracy: ≤ m real-time tracking

• Workflow: Fully automated measurement, mapping, and AI analysis

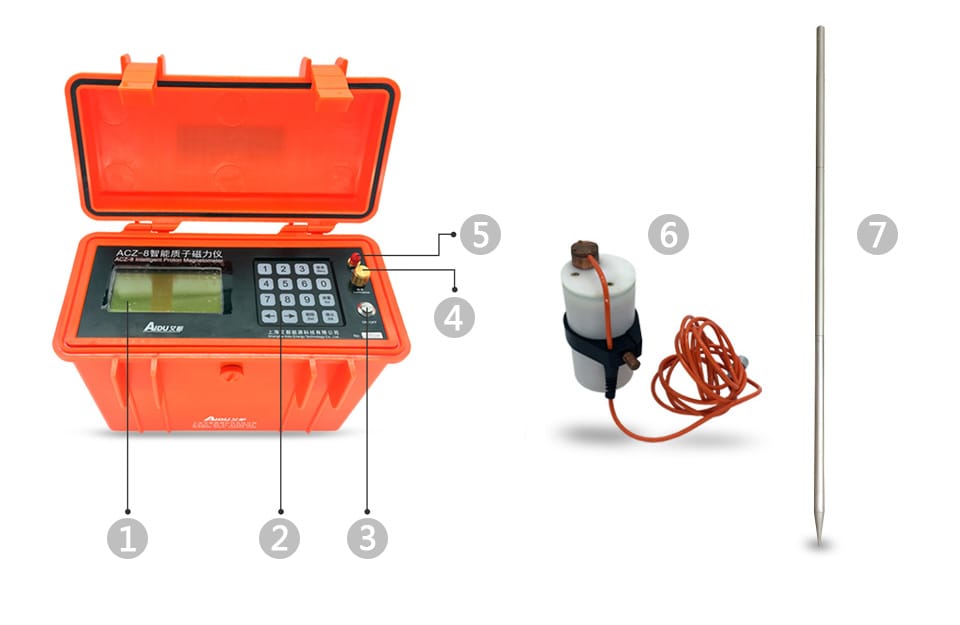

① LCD screen    ② Keyboard    ③ Switch

④ Brightness control   ⑤ GPS interface

⑥ High performance probe    ⑦ Probe

High Accuracy & Ultra-Low Temperature Drift

Building on our patented technology, the ACZ-9 offers exceptional long-term stability and a resolution of ≤ 0.1 nT. It reliably captures subtle geomagnetic anomalies, making it the ideal magnetic survey tool for precision exploration.

Cable-Free Operation with RTK-Level GPS

Equipped with multi-system GNSS positioning (GPS, BeiDou, etc.), the ACZ-9 achieves sub-meter positioning accuracy ≤1 m. Say goodbye to traditional manual point marking—enjoy a truly flexible, wireless field experience.

Real-Time 2D/3D Mapping & AI Interpretation

No manual data entry required. Survey trajectories are displayed in real-time, and profiles are extracted automatically. The built-in cloud platform provides AI-assisted anomaly interpretation, allowing you to navigate directly to potential target locations.

Versatile Survey Modes for Maximum Efficiency

Whether you need rapid reconnaissance scanning or high-density follow-up surveys, the ACZ-9 adapts to your needs. It supports multiple deployment modes:

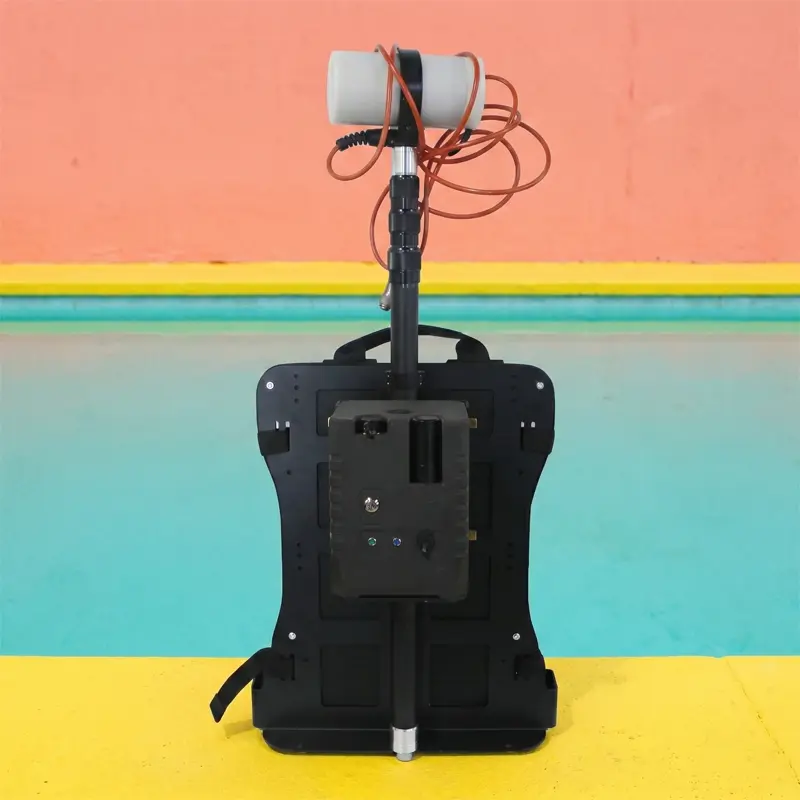

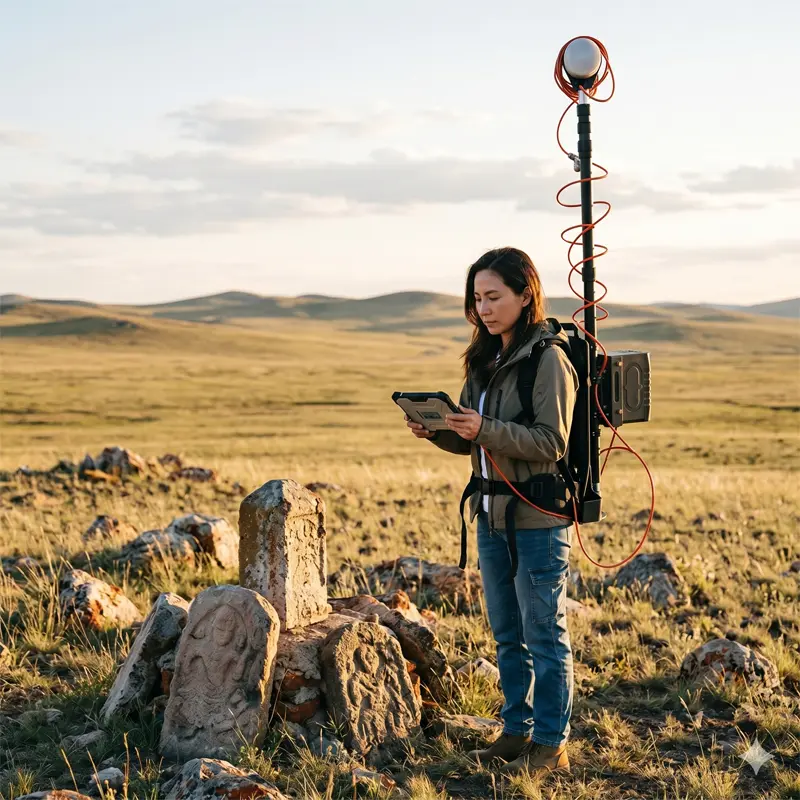

• Backpack-based walking surveys

• Fixed-point base station monitoring (Diurnal variation correction)

• UAV (Drone) or boat-based magnetic scanning

The ACZ-9 Proton Magnetometer is widely utilized across multiple industries to provide reliable subsurface insights:

• Mineral Exploration: Locating iron ore, tin deposits, gold veins, and metallic/non-metallic resources.

• Geological Mapping & Engineering Surveys: Investigating faults, bedrock depth, and geological structures.

• Archaeological Prospecting: Non-destructive mapping of buried structures and ancient artifacts.

• Environmental & Safety Monitoring: Detecting underground pipelines, unexploded ordnance (UXO), and environmental hazards.Proven Field Case Study

  • Location: Over 100 km from Kuala Lumpur, Malaysia.

  • The Challenge: A high-density MT survey system identified a low-resistivity anomaly at a depth of 100 meters (between points 60 and 70), indicating a potential ore body, but the exact trend was unconfirmed.

  • The Solution: The ACZ-9 Magnetometer was deployed to map the magnetic profile and determine the exact orientation of the vein.

  • The Result: Subsequent excavation successfully uncovered a rich tin deposit. The actual vein orientation and depth matched the ACZ-9’s automated survey results with high precision.
