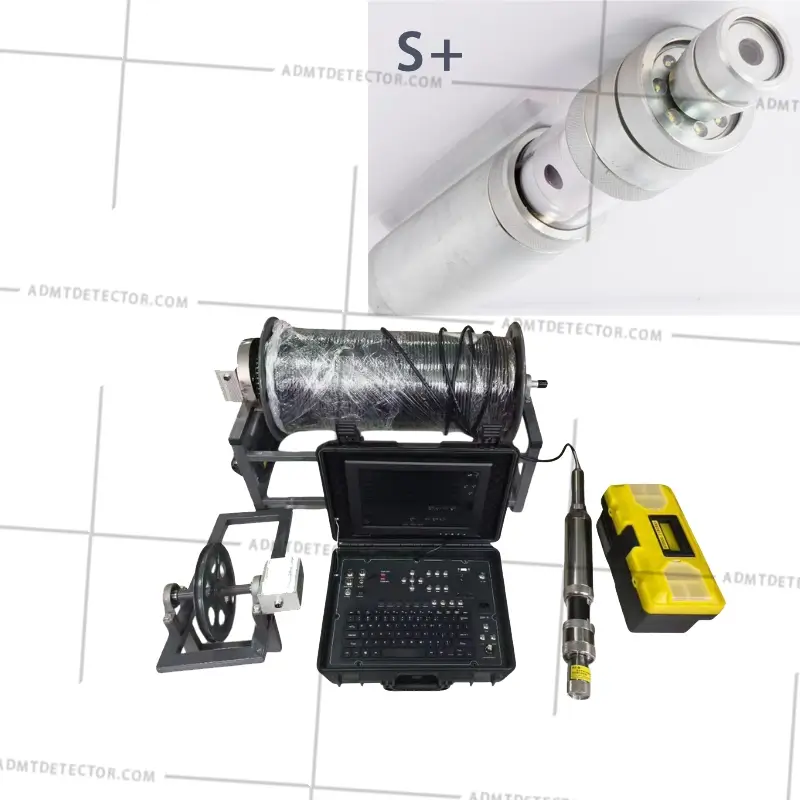

360 Degree Rotation Ultra Underwater Borehole Camera With Focus Function
As an upgraded version of the Dual Camera Pro Version downhole camera, this system adds video recording and saving functions, depth counting display, and basic downhole pulley functions, as well as a focus adjustment function. The entire system consists of a reel, camera head, and data control unit. The data control unit integrates a 12-inch LCD display and a USB 2.0 data acquisition card, allowing users to view, save, and comment on photos/videos using their own laptops. The system has a built-in 12V battery and can also be connected to an external 12V battery.
Camera head operating conditions: Maximum pressure 20MPA, temperature range -10°C to +70°C.
| Place of Origin | China |
|---|
Details About 360 Degree Rotation Ultra Underwater Borehole Camera With Focus Function
Key Technology and Performance
Design and User Experience
| CAMERA HEAD (Bottom and Side) | |
| Diameter | 73mm/50mm/40mm |
| Length | 400mm |
| Sensor type | Sony CCD camera |
| Resolution | 850 lines |
| Camera light | 8 high-brightness LED beads on the front |
| Lens | Bottom panoramic view, side rotates 360 degrees |
| Waterproof protection | IP68, Maximum pressure resistance depth up to 2000 meters |
| Optional Depth | 100M To 2000M |
| MONITOR | |
| Display dimensions and type | 12‘ TFT LCD |
| Image aspect ratio | 450:1 |
| Brightness | 500cd/m2 |
| System | NTSC/PAL |
| Display meter | YES |
| Winch | 100-400m (electric/manual optional) Above 500m (electric) |
| Focus Function | YES |
| Optional features (a wide range of options beyond the standard configuration) | |
| All-in-one Trolley | |
| Automatic winding cable | |
Application:
This well borehole camera is specially designed for use in water wells, pipes, and various boreholes, providing clear real-time visualization of downhole conditions. It is an excellent tool for well drilling, maintenance, repair, and object retrieval.
The system can be widely used for inspection of water wells, oil and gas wells, and geological boreholes—helping to detect well wall damage, dislocation, cracks, cavities, and foreign objects. In addition, it is suitable for underwater surveys, diving exploration, underwater operations, and sewage treatment inspections, offering versatile performance across multiple applications.
